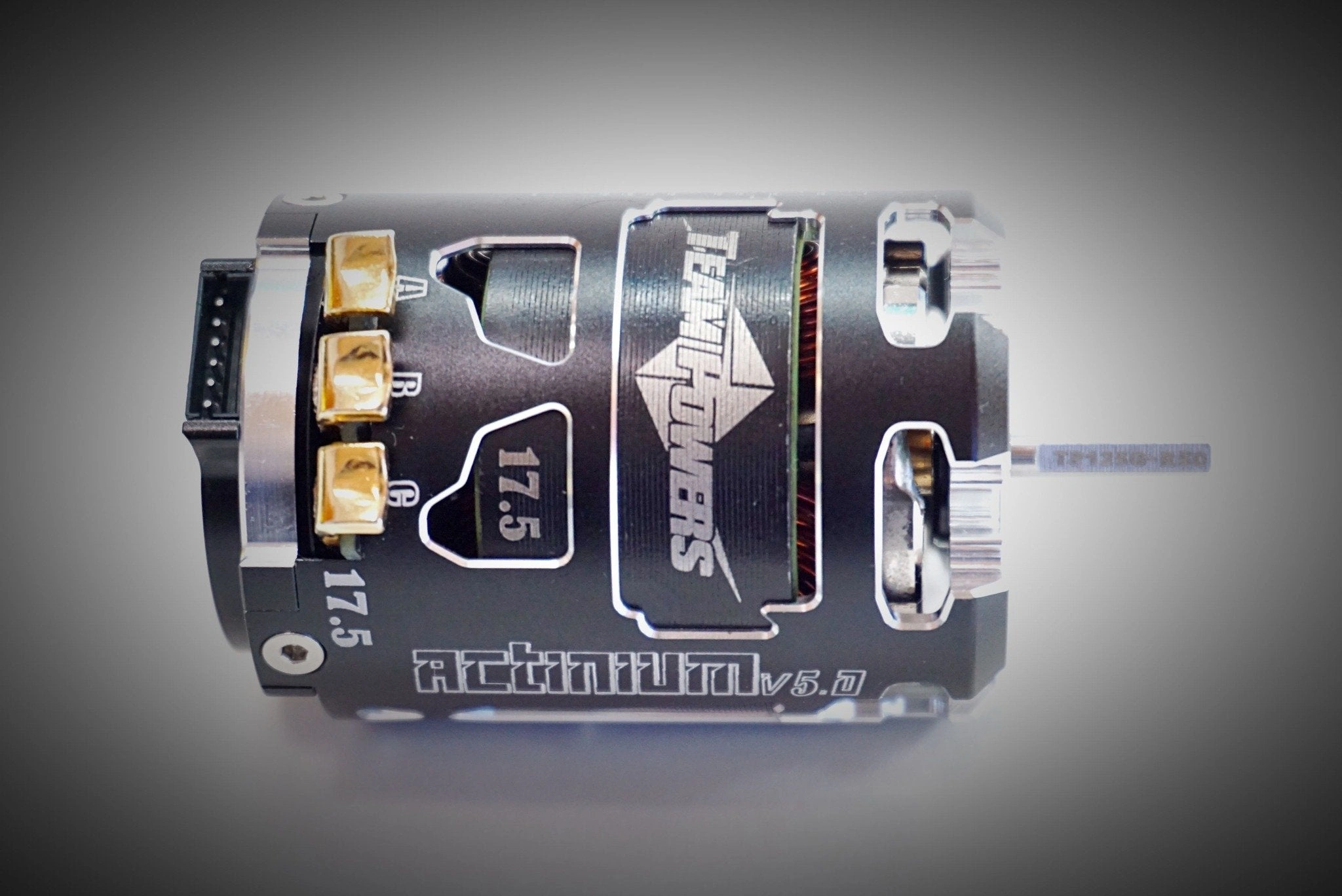

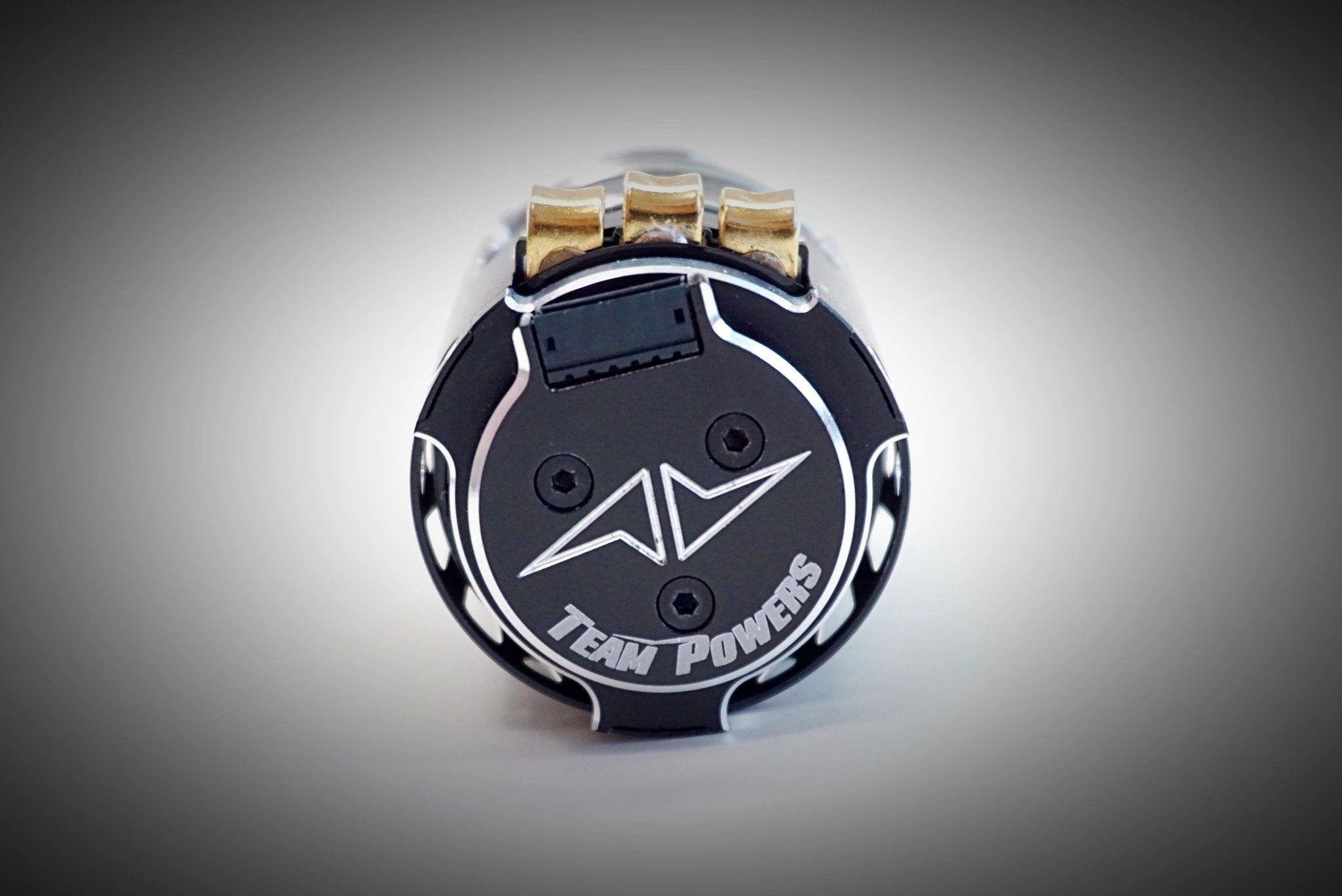

Team Powers Actinium V5 Brushless Motor: Performance & Innovation

Team Powers Actinium V5 Brushless Motor: Unleash Unrivaled Speed & Performance!

Unleash your inner glow with this exquisite piece – a whisper of luxury, a burst of vibrant color, and a secret promise of effortless confidence. It's more than just an item; it’s a statement. A subtle rebellion. A touch of magic waiting to be discovered. Prepare to turn heads and radiate pure, unadulterated joy.

$65.00 $129.99

Size:

13.5T

17.5T

21.5T

num:

description

Enhancements based on the Actinium V4 motor:

Revised assembly design for improved sensor accuracy.
Revised stator plate profile with 3 screws holes sealed to improve magnetic field consistency and efficiency.
Traditional three long assembly screws replaced with short screws mounted to side of the end bell.
Copper wiring purity increased for minimized resistance. Hand wound for maximum accuracy and efficiency.
Revised rotor magnetic material for improved strength, efficiency and extend the fade out time.
Motor can machining profiles slightly revised from V4 to enhance convection cooling.
Collector ring machined from proprietary alloy resulting in minimal resistance and maximum heat dissipation.

Specifications

Based on IFMAR/ROAR/EFRA/BRCA design specifications.
Modified winds, 13.5T, 17.5T, 21.5T, 25.5T motors are all ROAR approved ( BRCA pending).
Motor Dimensions (Diameter x Length) 35.8mm x 52.2mm.
Shaft Diameter: 3.17mm
Magnet Dimensions
12.3 x 5x 24.2mm(3.5T~9.5T),
12.5 x7.2x25.2mm (10.5T~21.5T),
12.3 x7.2x25.2mm (25.5T)
Variable timing end bell
Weight: ~150g (varies between turns)
Recommended RC Model Car: 1/10 Scale Race Vehicles
Available Turns: 4.5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T
