Kyosho MINI-Z MR-04 EVO2 Chassis: High-Performance RC Car Upgrade (W-MM/8500KV)

Unleash the Beast: Kyosho Mini-Z MR-04 EVO2 Chassis Powerhouse 8500KV Ready to Race!

Alright, buckle up buttercup, because this ain't just a thing you're buying, it's a vibe. This is the kind of stuff that makes your Instagram pop, your friends jealous, and your mornings a little less…meh. Think less "product" and more "experience." We're talking serious wow factor, the kind that whispers "treat yourself, you deserve it." Trust me, you want this. You NEED this. Let's make some magic happen.

$125.00 $249.99

num:

description

The 1/27.6 MINI-Z RWD MR-04 features a micro sensored brush motor as its power source, which linearly responds to throttle control from the bottom to top RPM range. The EVO2 main system features super low latency control. Almost everything has been updated from the 14-year-old MR-03!

Required to Run

Transmitter and compatible receiver unit (EVO/EVO2)

Noble Mini-Z EVO Receiver

Noble NB4 2.4GHz TX

Body, wheels and tires

Jomurema GT01 - Recommended for racing

AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.

Team Orion NiMH 900HV AAA Cells

AAA-size alkaline batteries x 4 for transmitter

Rage RC AAA Alkaline Batteries

Features

The EVO2 mainboard shortens the latency from 2.6 msec to less than 1 msec.

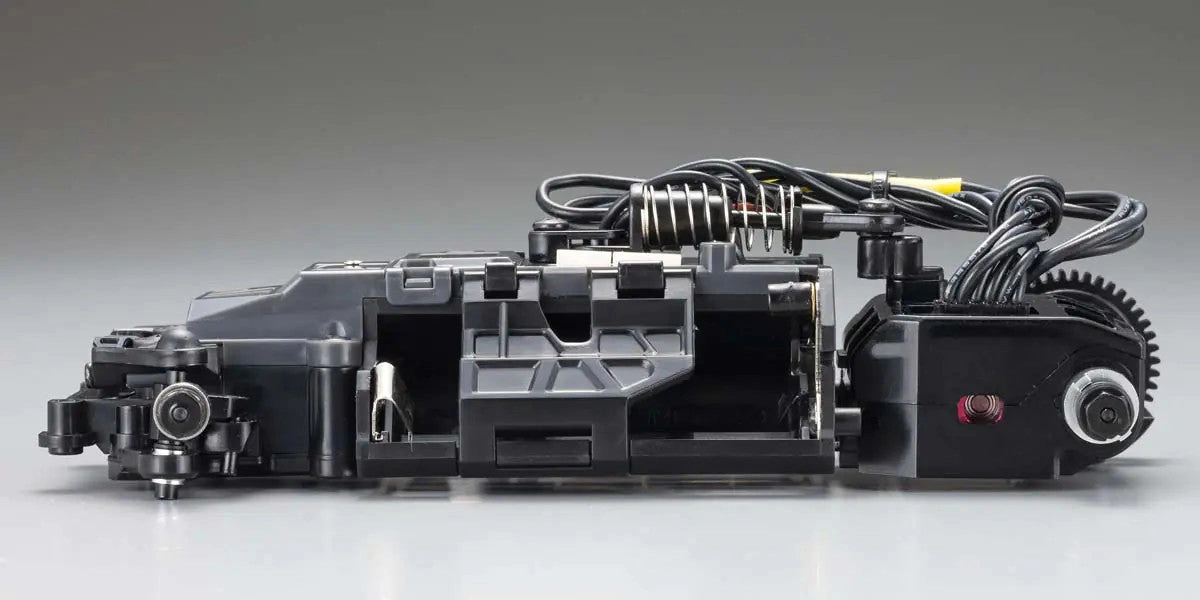

Battery mount position is lowered to lower the center of gravity for better cornering
The all-new front section reduces the scrub radius by 1.5mm for better steering control.
The one-piece MA-030 type kingpin/knuckle reduces weight and play.

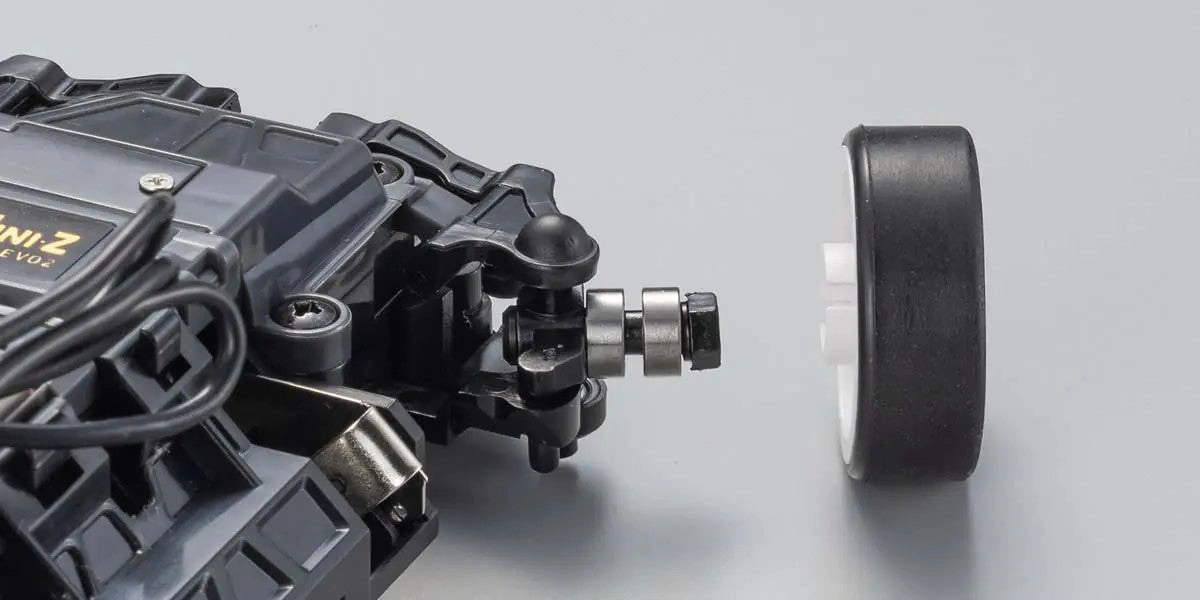

The 3-mm diameter front wheel shaft and bearing reduce friction loss.
The new potentiometer is more durable, and it ensures precise steering control.
IC tag mount position is raised by 0.5 mm, which means you can use even smaller front tires
The EVO2 main board also supports existing EVO receiver units.

Specifications

Length: 124.5mm
Width: 72～76mm
Height: 31mm
Motor Mount: MM
Wheelbase 98.0mm (LL)
Tread: Tires not included
Tires: Not included
Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
Weight: 135.5g (Body/tires/wheels not included）
Motor Kyosho Speed House Xspeed 85 (KV8500)

Contents

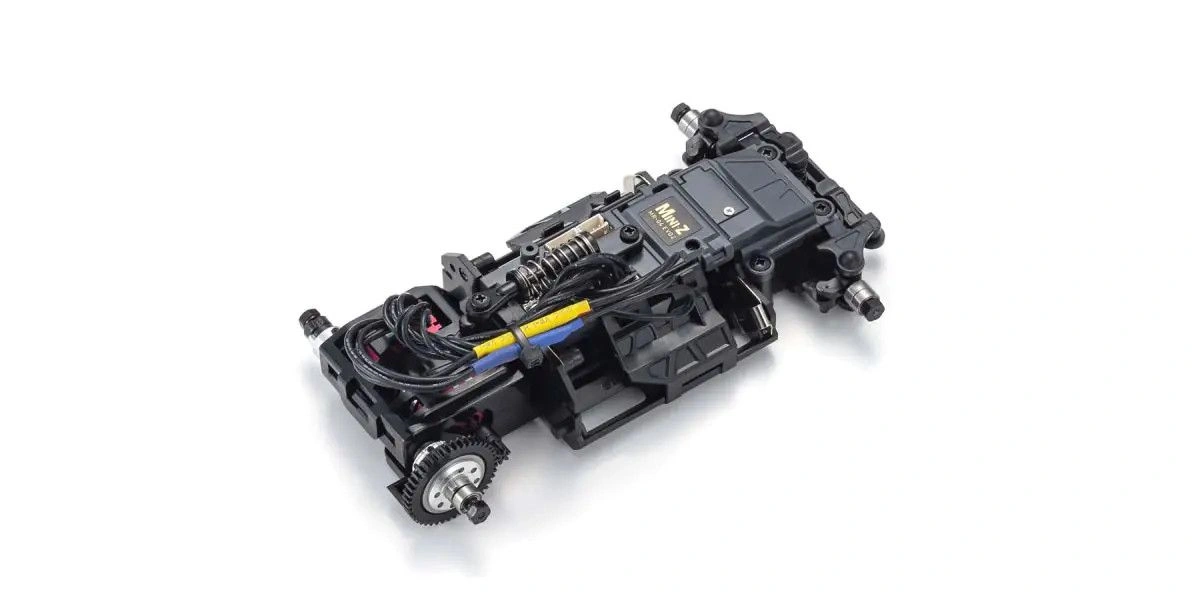

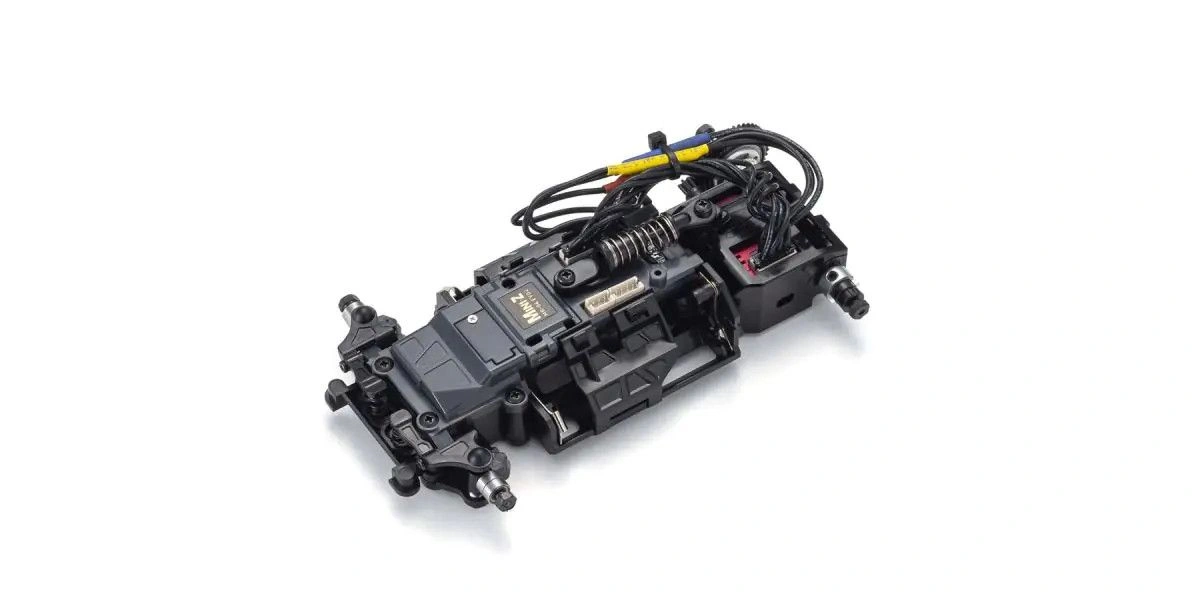

MR-04 EVO2-W-MM Factory assembled chassis with KYOSHO SPEED HOUSE KV8500 brushless motor
Parts set for changing front tread
6T, 7T, 8T, 9T Pinion gears
Wheel wrench
Tools for pinion gears
Spare wheel nuts
