Kyosho MINI-Z MR-04 EVO2 Chassis: Upgrade Your RC Racing Experience Now!

Unleash the Beast Kyosho Mini-Z MR-04 EVO2 Racer! High-Speed Fun on Wheels 5600KV Power Ready to Race!

Alright, picture this, you're strolling through a sun-drenched, palm-lined boulevard, the scent of salt and freedom in the air. This isn't just a thing, it's a vibe. A feeling. It’s a slice of pure, unadulterated awesome, meticulously crafted to elevate your everyday. Trust me, you need this. It's the missing piece to your puzzle, the secret sauce to your success, the ultimate conversation starter. Get ready to turn heads, spark envy, and live the life you've always dreamed of. This... this is the upgrade you deserve.

$105.00 $209.99

num:

description

The 1/27.6 MINI-Z RWD MR-04 features a micro sensored brush motor as its power source, which linearly responds to throttle control from the bottom to top RPM range. The EVO2 main system features super low latency control. Almost everything has been updated from the 14-year-old MR-03!

Required to Run

Transmitter and compatible receiver unit (EVO/EVO2)

Noble Mini-Z EVO Receiver

Noble NB4 2.4GHz TX

Body, wheels and tires

Jomurema GT01 - Recommended for racing

AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.

Team Orion NiMH 900HV AAA Cells

AAA-size alkaline batteries x 4 for transmitter

Rage RC AAA Alkaline Batteries

Features

The EVO2 mainboard shortens the latency from 2.6 msec to less than 1 msec.
Battery mount position is lowered to lower the center of gravity for better cornering
The all-new front section reduces the scrub radius by 1.5mm for better steering control.
The one-piece MA-030 type kingpin/knuckle reduces weight and play.
The 3-mm diameter front wheel shaft and bearing reduce friction loss.
The new potentiometer is more durable, and it ensures precise steering control.
IC tag mount position is raised by 0.5 mm, which means you can use even smaller front tires
The EVO2 main board also supports existing EVO receiver units.

Specifications

Length: 124.5mm
Width: 72～76mm
Height: 31mm
Motor Mount: MM
Wheelbase 98.0mm (LL)
Tires: Not included
Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
Weight: 135.5g (Body/tires/wheels not included）
Motor Kyosho Speed House Xspeed 56 (KV5600)

Contents

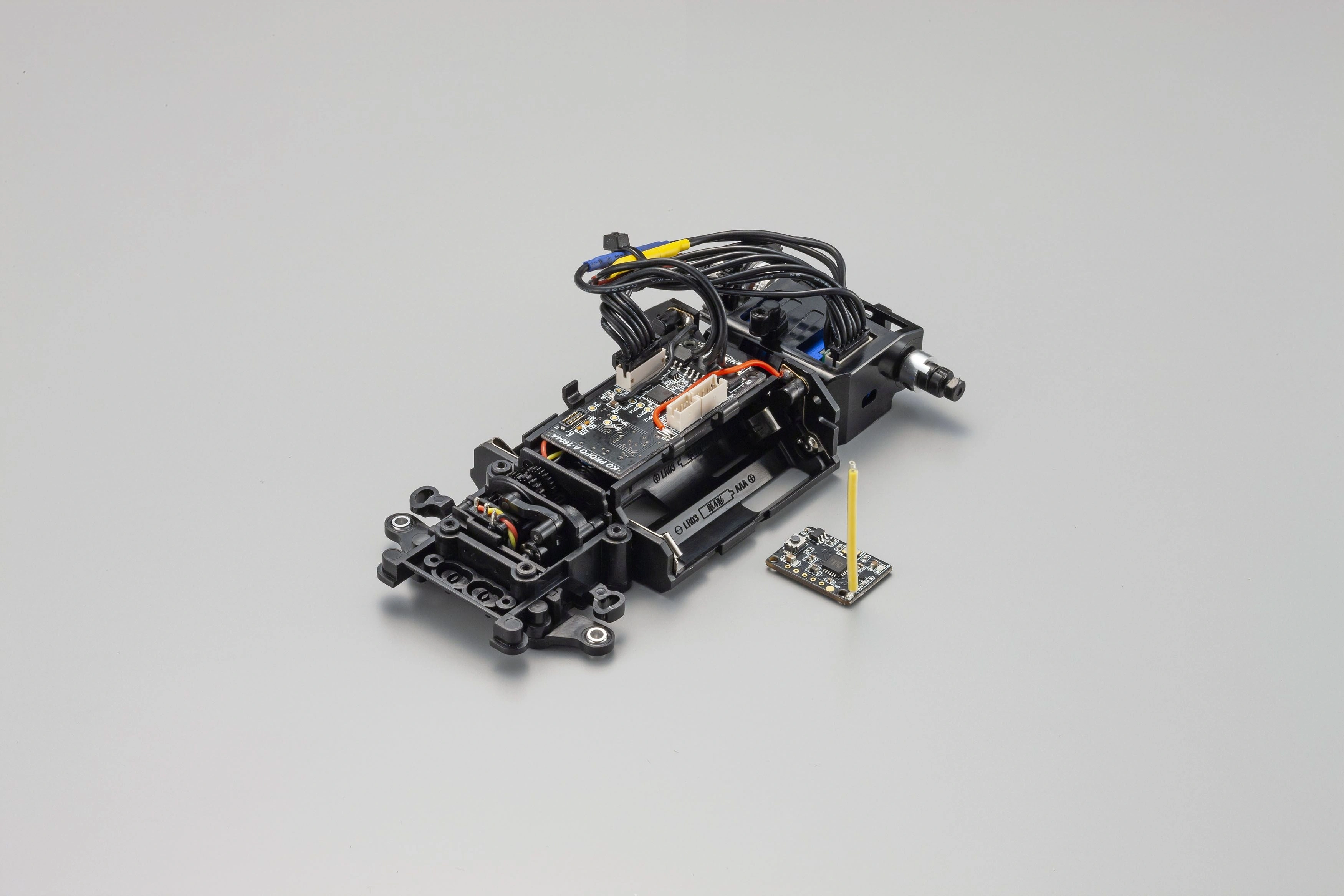

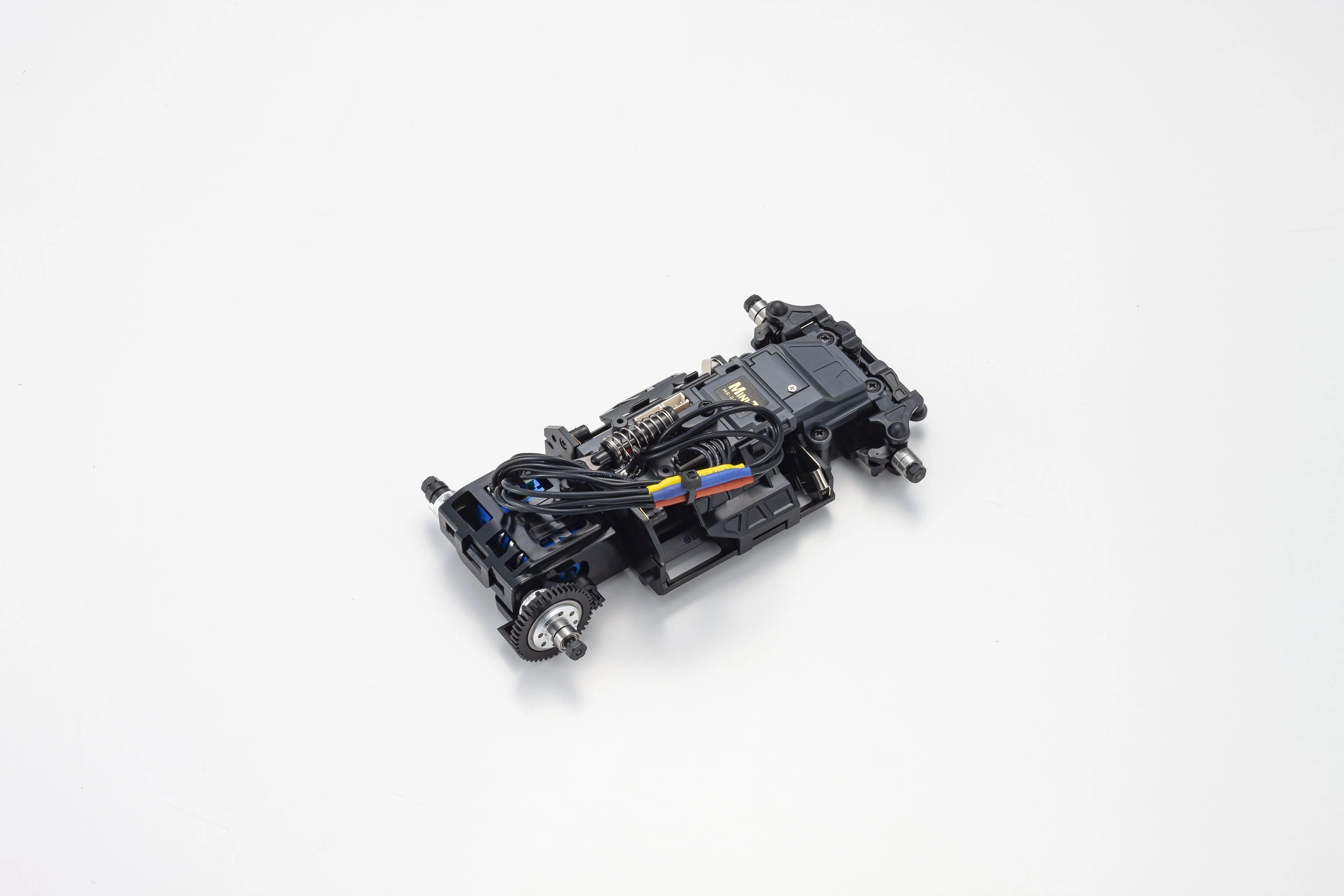

MR-04 EVO2-W-MM Factory assembled chassis with KYOSHO SPEED HOUSE KV5600 brushless motor
Parts set for changing front tread
6T, 7T, 8T, 9T Pinion gears
Wheel wrench
Tools for pinion gears
Spare wheel nuts
